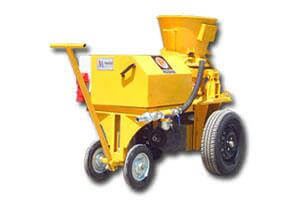

Rotor-type Gunite Machines (for Dry-Mix + Semi-Dry-Mix) / SH-6

Gunite Machine for Dry or Semi-Dry Mix

AC Power 380 V, 50 Hz
Mill motor 7.5 kW
Delivery rate 6 m3/h
Max. grain size 16 mm
Filling height 900 mm
Dimensions (L x W x H) 1200 x 500 x 1400 mm
Weight 450 kg
It is a dry-mix shotcrete machine which is also known as gunite machine. This model of dry mix shotcrete machine is successfully used in applications at dam, subway, railway, super highway constructions; in engineering, underground engineering as well as tunneling and mining operations, and in hydropower projects, slope stabilization, shaft chamotte plaster work, and repair and restoration.
Shotcrete process requires compressed air to convey the pre-dampened mix through delivery hose to the nozzle to project the material onto the surface. Under high velocity, concrete support layer is formed after the projected material coagulates and hardens.
After its connection to an extra site air compressor, it successfully projects the shotcrete material onto the surface it is applied to.
  • It is one of the most popular and best seller machines for shotcrete application.
  • It is simple, durable and long lasting with no defects.
  • There is no consumption of replacable parts rather than its rubber and steel rings.
  • Its custom-designed transmission mechanism is powerful and durable.
  • It is a very balanced machine as its upper lid is closed with only one lock.
  • The flow of the shotcrete material is steady as its bucket has a vibrator.
  • It does not cause dust during application.
  • Its trailer is strong and compatible to be moved on the challenging ground.
  • It conforms to the European and world standards.
  • 2.5" Rubber concrete hose
  • Cleaning Equipment
