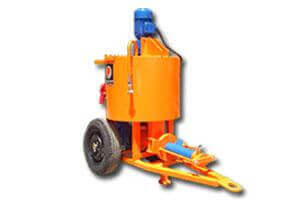

Grout Pumps / GP-35

Grout Pump with Mixer

AC Power 380 V, 50 Hz
Pump motor 5.5 kW
Mixer motor 2.2 kW, 55 rpm
Delivery rate 35 lt/min
Delivery distance 50 m wide, 15 m high
Ideal grain size 0 - 3 mm
Max. grain size 4 mm
Max. pressure 30 bar
Mixer volume 260 lt
Filling height 1200 mm
Dimensions (L x W x H) 2000 x 1100 x 1800 mm
Weight 480 kg
This version of the grout pump is enhanced with a continuous mixer built-in. The mixer increases the efficiency of the grout application from many aspects. Having a unique design, it is one of the best grout pumps in the world particularly for grouting cement into boreholes in all directions.
The grout components are mixed with water inside the mixer. As it has its own mixer, it makes the mixture homogenously and under control. The pump can be run any time when the grout mixture is ready. Then, it fills the borehole or the area where the grout is applied.
It is ideal for applying any grout material; cement, gypsum, lime, refractory materials, and geothermal grout with grain size up to 3 mm.
  • It is a unique grout pump with no equivalent product in the world.
  • It is very practical at the field with its own mixer.
  • Mixer pump leads to work faster.
  • The mixer makes homogenous grout mixes and saves the life of the pump.
  • The homogenous grout mix prevents blockage in the pump.
  • It can be used in small size contact and consolidation jobs.
  • Its electrical components and motors are powerful.
  • It does not block the pump or cause any other trouble when stopped and re-started.
  • It is mobile on strong and durable wheels.
  • It can be pulled by a vehicle or moved by hand.
  • Its design is very user-friendly and makes the cleaning process very practical.
  • It will work for years like the first day if it is properly cleaned and maintained.
  • It conforms to the European and world standards.
  • P8 rotor-stator
  • 1" Rubber Concrete Hose
  • Cleaning Equipment
