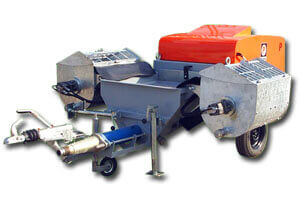

Self-Levelling Screed and Mortar Transfer Pumps / TPD-1MM

Mortar Transfer Pump with Mixer

Drive Diesel Engine, Lombardini, 22 kw
Operation system Hydraulic
Compressor 350 lt/min
Delivery rate 0 ~ 10 m3/h
Delivery distance 90 m wide, 45 m high
Ideal grain size 0 - 5 mm
Max. grain size 10 mm
Max. pressure 40 bar
Mixer volume (x 2) 150 lt
Hopper volume 175 lt
Filling height 1100 mm
Dimesions 4000 x 1500 x 1600 mm
Weight 1380 kg
This version of the machine is ideal for pumping fine grained concrete, liquid screed and mortar. It is a diesel-driven machine and operated by a powerful hydraulic system. All the functions including the delivery rate are controlled hydraulically and can be set manually at any degree possible.
It mixes components in the mixers. After the mix is ready, it is poured into the pump by hydraulic lifting and delivered to the field.
It is ideal for mixing and conveying floor-screed and fine-grained concrete, and various other mortar mixes with appropriate grain size and viscosity.
  • It is very practical and user friendly.
  • It can pump all kinds of sand and similar materials with maximum 0-10 mm grain size.
  • It applies all kinds of mixes with approprite grain size and viscosity which will not block the hose.
  • Its delivery rate is adjustable between 0 and 10 m3 per hour.
  • It has two mixers to make the mix.
  • It is possible to work with one mixer up to 5 m3 per hour delivery rate.
  • The mixer is independent from the pump and works continuously.
  • The mixer makes homogenous mixes.
  • It can pump the mix by loading directly from a mixer-truck.
  • It is a qualified stationary pump which has the capacity to pump the mortar from ground to floors.
  • Its motor and hydraulic pump are very powerful.
  • It does not block the pump or cause any other trouble when stopped and re-started.
  • Pump group is robust and long-lasting.
  • It has an electrical vibrator.
  • It is mobile with the diesel engine.
  • Its trailer is robust and convenient for all conditions.
  • Its breaks are effective.
  • It can be pulled safely by a vehicle in traffic.
  • Its user-friendly design leads to a very practical process of cleaning.
  • It is very easy and practical to assemble-disassemble the parts of the pump.
  • It will work for years like the first day if it is properly cleaned and maintained.
  • It has emergency button which will stop the machine in case of emergency.
  • It conforms to the European and world standards.
  • P12 rotor-stator
  • 2" Rubber Concrete Hose
  • Power trowel
  • Cleaning Equipment
