Self-Levelling Screed and Mortar Transfer Pumps / TPE-1

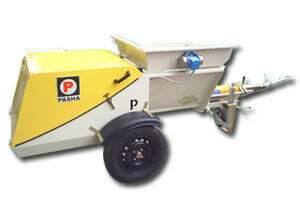

Electrical Mortar Transfer Pump

AC Power 380 V, 50 Hz
Pump motor 9 - 11 kW (two-stage)
Delivery rate 5 - 10 m3/h
Delivery distance 90 m wide, 45 m high
Ideal grain size 0 - 7 mm
Max. grain size 10 mm
Max. pressure 40 bar
Hopper volume 175 lt
Filling height 1100 mm
Dimensions (L x W x H) 2800 x 1300 x 1400 mm
Weight 450 kg
It is designed with a powerful pump to transfer various kinds of mortar from a mixer or mixer-truck to the location where it is utilized. Its delivery rate is adjustable as 5 or 10 m3 per hour depending on the stages of the electric motor.
It is located at the ground. It should be loaded with the mortar from a mixer or mixer-truck. The delivery is started after the hopper is loaded. The delivery continues as long as the machine is fed by mortar.
It is ideal for conveying liquid floor-screed and various other mortar mixes with appropriate grain size and viscosity.
  • It is a great pump for delivering mortar from a mixer-truck.
  • It is a very qualified pump as it has two stages.
  • Its delivery rate is adjustable between 5 and 10 m3 per hour.
  • Pump group is robust and long-lasting; same rotor-stator delivers 500 m3 of mortar at least.
  • Electric-driven machine is always more profitable in the long run.
  • There is no extra expense for the maintanence of a diesel engine.
  • It is environment friendly.
  • It is the pump to be used at any construction site where the necessary electrical power is available.
  • Its trailer is robust and it can be pulled safely by a vehicle.
  • P12 rotor-stator
  • 2" Rubber Concrete Hose
  • Finishing tools
  • Power trowel
  • Cleaning Equipment
