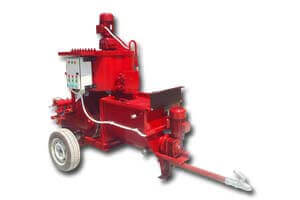

TEKKÖK | Piston Grout Pump with Mixer GPP-120

AC Power	380 V, 50 Hz
Pump type	Hydraulic Piston Pump
Pump motor	7.5 kW
Mixer / agitator motor	2.2 kW / 2.2 kW
Delivery rate	0 - 120 lt/min
Delivery distance	750 m wide, 150 m high
Ideal grain size	0 - 4 mm
Max. grain size	8 mm
Max. pressure	40 bar
Mixer volume	200 lt
Agitator volume	250 lt
Filling height	1200 mm
Dimensions (L x W x H)	3000 x 1200 x 1600 mm
Weight	1000 kg

This is a piston gout pump is on wheels promising more mobility in addition to its higher delivery rate and pressure. It is combined with three separate units; a continuous mixer, an agitator and a piston pump. The mixer makes homogenous grout mix, the agitator refreshes it and the piston pump delivers it to long distances at higher delivery rates and pressure. This kind of a grout set is one of the most useful and popular methods for contact and conslidation grouting.

It consists of two integrated units, one of which is a continuous mixer and the other piston pump. The ingredients are mixed with water inside the mixer and the mixture made under control. The pump can be run any time after the pump is loaded with the mixture. Then, it fills the borehole or area that the grout is applied.

It is ideal for applying any grout material; cement, gypsum, lime, refractory materials, geothermal grout, and bentonite with grain size up to 4 mm.

It is a very powerful grout pump with its unique design of the integrated mixer, agitator and pump.
It leads to work faster as the mixer, agitator and pump are integrated in one body.
The mixer, agitator and pump can be run together or separately.
It is very practical at the field with its own mixer.
The mixer makes homogenous grout mixes and prevents the over consumption of the grout components.
The homogenous grout mix prevents blockage in the pump.
The homogenous grout mix saves the life time of the pump.
The agitator saves energy while it is in use.
It can be used for contact and consolidation jobs.
Its electrical components and motors are powerful.
It does not block the pump or cause any other trouble when stopped and re-started.
It is mobile on strong and durable wheels.
It can be moved easily as its centre of gravity is levelled in balance.
It can be pulled by a vehicle via its drawbar.
Its design is very user-friendly and makes the cleaning process very practical.
It will work for years like the first day if it is properly cleaned and maintained.
It conforms to the European and world standards.

1" Rubber Concrete Hose
Cleaning Equipment
