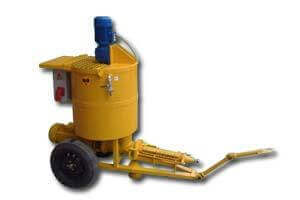

TEKKÖK | Grout Pump with Mixer GP-55

AC Power	380 V, 50 Hz
Pump motor	7.5 kW
Mixer motor	2.2 kW, 55 rpm
Delivery rate	80 lt/min
Delivery distance	100 m wide, 30 m high
Rotor stator	No.12
Grain size support	0 - 10 mm
Max. pressure	30 bar
Mixer volume	500 lt
Filling height	1300 mm
Dimensions (L x W x H)	2000 x 1000 x 1900 mm
Weight	530 kg

This version of the grout pump is enhanced with a larger continuous mixer built-in. The mixer increases the efficiency of the grout application from many aspects. Having a unique desing, it is one of the best grout pumps in the world particularly for grouting cement into boreholes in all directions.

The grout components are mixed with water in the mixer and the homogenous mix made under control. The pump can be run any time after the mixing process. Then, it practically fills the borehole or area where the grout is applied. It is possible to run the mixer and pump simultaneously to save time in the application process.

It is ideal for applying standard strength grout mixes (cement/gypsum/lime based mixes, etc...), refractory as well as geothermal grout mixes.

It is a unique grout pump with no equivalent product in the world.
It is very practical at the field with its own mixer.
Mixer pump leads to work faster.
The mixer makes homogenous grout mixes and prevents the over consumption of the grout components.
The homogenous grout mix prevents blockage in the pump.
The homogenous grout mix saves the life time of the pump.
It can be used in small size contact and consolidation jobs.
Its electrical components and motors are powerful.
It does not block the pump or cause any other trouble when stopped and re-started.
It is mobile on strong and durable wheels.
It can be pulled easily by hand as its centre of gravity is levelled in balance.
It can be pulled by a vehicle via its drawbar.
Its design is very user-friendly and makes the cleaning process very practical.
It will work for years like the first day if it is properly cleaned and maintained.
It conforms to the European and world standards.

P12 rotor-stator
1" Rubber Concrete Hose
Cleaning Equipment

Grout Pump with Mixer
