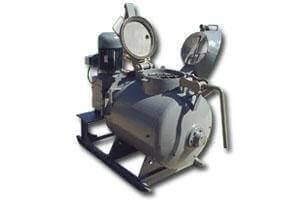

TEKKÖK | Pneumatic Mixer Pump PCE-45

AC Power	380 V, 50 Hz
Mixer motor	7.5 kW
Delivery rate	3.6 ~ 5.5 m³/h
Max. grain size	16 mm
Mixer volume	260 lt
Filling height	900 mm
Dimensions (L x W x H)	900 x 1500 x 1200 mm
Weight	450 kg

It is a pneumatic conveyor which runs through an electric source and with an extra site air compressor. It is used for transfering various mortar mixes or in applications such as grouting and floor-screed.

It is very similar to a mixer pump which is connected to an extra site air compressor. The components are mixed in the mixer. After the connection to the air compressor, the mix is delivered through the compressed air to the field where it is applied.

It is ideal for applying any grout mix, floor screed, fine grained concrete and similar mixes with appropriate grain size and viscosity.

It is a simple and user-friendly machine.
It does not have built-in compressor and delivers the mix through an extra site air compressor.
Its cost is very economical as it does not have a built-in compressor.
It is the ideal machine for the user who already has an air compressor.
There is no extra expense for the maintanence of a diesel engine.
It is environment friendly.
Its mixer is long-lasting and the inner corrosion disks are replacable.
Shaft of the mixer and its bearings are long-lasting.
It is used for conveying mortar and screed as well as for grouting.
It can deliver the mixes which includes more amount of sand.
It is ideal for grouting the spaces formed in tunnels or during excavation.
It is mounted on sled.
It is optionally mounted on trailer.
