Floor Screed Pumps / WM-55S

Floor Screed Pump with Hydraılic Skip

Engine DEUTZ Diesel, 36 kW, 3-cylinders
Screw compressor 5.3 m3/min, 7 bar
Theor. delivery rate 5.3 m3/h
Delivery distance 120 m high
Skip Hydraulic
Max. grain size 16 mm (32 mm is optional)
Mixer volume 260 lt
Filling height 500 mm
Grease pump Automatic
Warning indicators Digital
Traffic signals Available
Instrument light Available
Dimensions (L x W x H) 4500 x 1500 x 2000 mm
Weight 2050 kg

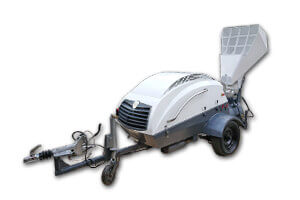

FLOWMASTER WM-55S is a very powerful floor-screed pump. It is one of the best machines in the world thanks to its powerful diesel engine. The delivery rate is higher and the delivery distance is longer than its equivalents’. In addition to that, the hydraulic skip increases the work capacity as it leads to finish the application in shorter time. Its esthetic and user-friendly design also contributes to its high performance rate. Its great design provides high efficiency.
The machine is located at the ground level. After mixing the components in the mixer, it can pump the screed up to the building floor where the floor-screed is applied. It is possible to pump screed up to 35th floor with the standard equipment.
FLOWMASTER WM-55S Floor Screed Pump with Hydraulic Skip is ideal for mixing and conveying floor-screed, sand, gravel, fine grained concrete and similar components with grain size up to 16 mm (32 mm is optional) and with appropriate viscosity.
  • The greatest advantage of this product is its competitive price.
  • It is the choice of professionals to deliver screed and fine grained concrete.
  • It works with no problem at any climate and environment.
  • Its delivery rate is 5.8 m3 per hour as the amount of the air is more than its equivalents.
  • The screed is delivered to long distances in shorter time thanks to the more amount of the air.
  • The delivery of the screed is automatic and activated by push-button.
  • The air flow is automatically stops when the delivery of the screed-mix is completed.
  • Grease pump is automatic.
  • The control of the mixer is electronic and push-button activated.
  • Its gearbox is powerful and robust.
  • It does not cause problems related to the drive-axle because it is a mechanism without a drive-axle.
  • Its mixer is long-lasting and the inner corrosion disks are replacable.
  • The shaft of the mixer and its bearings are long-lasting.
  • It is mobile as its diesel engine is not dependent on any staionary source of energy.
  • Its trailer is strong and breaks are powerful.
  • It can be pulled safely by a vehicle along long distances.
  • It conforms to the European and world standards.
  • 2.5" Concrete Hose
  • Discharge Stand
  • Finishing Tools
  • Power Trowel
  • Cleaning Equipment
