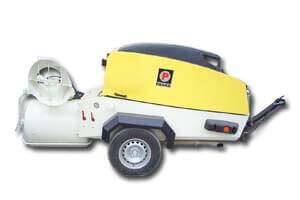

TEKKÖK | Electrical Floor Screed Pump SPE-55

AC Power	380 V, 50 Hz
Pump motor	30 kw
Screw compressor	4.3 m³/min, 7 bar
Theor. delivery rate	4.8 m³/h
Delivery distance	120 m high
Skip	Hydraulic
Max. grain size	16 mm (32 mm is optional)
Mixer volume	260 lt
Filling height	500 mm
Grease pump	Automatic
Warning indicators	Digital
Traffic signals	Available
Instrument light	Available
Dimensions (L x W x H)	3600 x 1500 x 1500 mm
Weight	1850 kg

FLOWMASTER SPD-55 is a very powerful floor-screed pump. It is one of the best machines in the world thanks to its powerful diesel engine. The delivery rate is higher and the delivery distance is longer than its equivalents’. In addition to that, the hydraulic skip increases the work capacity as it leads to finish the application in shorter time. Its esthetic and user-friendly design also contributes to its high performance rate. Its great design provides high efficiency.

The machine is located at the ground level. After mixing the components in the mixer, it can pump the screed up to the building floor where the floor-screed is applied. It is possible to pump screed up to 35th floor with the standard equipment.

FLOWMASTER SPD-55 Electrical Floor Screed Pump with Hydraulic Skip is ideal for mixing and conveying floor-screed, sand, gravel, fine grained concrete and similar components with grain size up to 16 mm (32 mm is optional) and with appropriate viscosity.

The greatest advantage of this product is its competitive price.
It is energy saver and more economic as its electrical engine does not consume any diesel oil.
It is the choice of professionals to deliver screed and fine grained concrete.
It works with no problem at any climate and environment.
Its delivery rate is 4.8 m3 per hour as the amount of the air is more than its equivalents.
The screed is delivered to long distances in shorter time thanks to the more amount of the air.
The delivery of the screed is automatic and activated by push-button.
The air flow is automatically stops when the delivery of the screed-mix is completed.
Grease pump is automatic.
The control of the mixer is electronic and push-button activated.
Its gearbox is powerful and robust.
It does not cause problems related to the drive-axle because it is a mechanism without a drive-axle.
Its mixer is long-lasting and the inner corrosion disks are replacable.
The shaft of the mixer and its bearings are long-lasting.
Its trailer is strong and breaks are powerful.
It can be pulled safely by a vehicle along long distances.
It conforms to the European and world standards.
